Medical Inflatable Bedsore Prevention Air Cushion
Medical Inflatable Bedsore Prevention Air Cushion
Medical Inflatable Bedsore Prevention Air Cushion
Medical Inflatable Bedsore Prevention Air Cushion
Medical Inflatable Bedsore Prevention Air Cushion

Medical Inflatable Bedsore Prevention Air Cushion

Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm: FOB,CFR,CIF,EXW,FCA,CPT,CIP
Min. Order: 1 Bag/Bags
Delivery Time: 10 Days

Contact Now Add to Basket

Basic Info

    Model No.: RCD-B-01-H

    Product Name: Anti Bedsore Air Mattress

    Applicable People: Bedridden

    Function: Anti Decubitus And Bedsore

    Color: Blue

    Mattress Size: 190*85*8cm (after Inflated )

    Mattress Material: Nylon And PVC Compound Fabric

    Max Weight Capacity: 150kgs

    Features: Comfortable And Durable

    Wrranty: 12months

    Amount Of Cells: 24cells

Additional Info

    Packaging: Each set air mattress packaged with a color box, box size: 29*17*41CM, 5.5kgs, 4 sets a carton, carton size: 70*31*41.5CM, 24kgs

    Productivity: 50000pcs /month

    Brand: Customized

    Transportation: Ocean,Land,Air,By Express

    Place of Origin: China

    Supply Ability: 50000pcs /month

    Certificate: CE/FDA/ISO13485

    Port: Chengdu,Guangzhou,Shanghai

Product Description

Medical Inflatable Bedsore Prevention Air Cushion

The Medical Inflatable Bedsore Prevention Air Cushion was designed to provide relief from bed sores and ulcers caused from prolonged bed rest. Equipped with 24 individually heat sealed air chamber for even weight disbursement and superior support. Designed to be placed on top of a regular bed mattress. It has air-filled channels that alternate filling up and decompressing to keep bearing weight off certain areas, and allows blood flow to reach different areas of the body of immobilized or weak patients who cannot shift their weight frequently.

Each group has 12 air chambers. And each group is alternately deflated and inflated to create a mattress surface that evenly distributes a patient or loved one`s weight and eliminates pressure spots.

The principle of fluctuation is the two air chambers cycle exhaust.The air pump has two air outlet connected to the two air Chambers respectively.

So, When one chamber is saturated with air, the other air chamber slightly exhausts.After 12 minutes, the two Chambers are exchanged for inflate and exhaust.

Thus ,during use ,only one channel of this pump provides pressure, while the other channel stops providing pressure;The two channels alternate every 12 minutes. In other words, during use, only one group of the air chamber of the inflatable mattress is filled with air, while the other one is not full. After 12 minutes, the two groups of air chambers exchange work. The air chamber previously filled with air starts to ventilate, while the air chamber previously unfilled with air starts to inflate.

This design can constantly change body's poistion on bed to prevent bedsores.


anti bedsore air mattress


Product Details

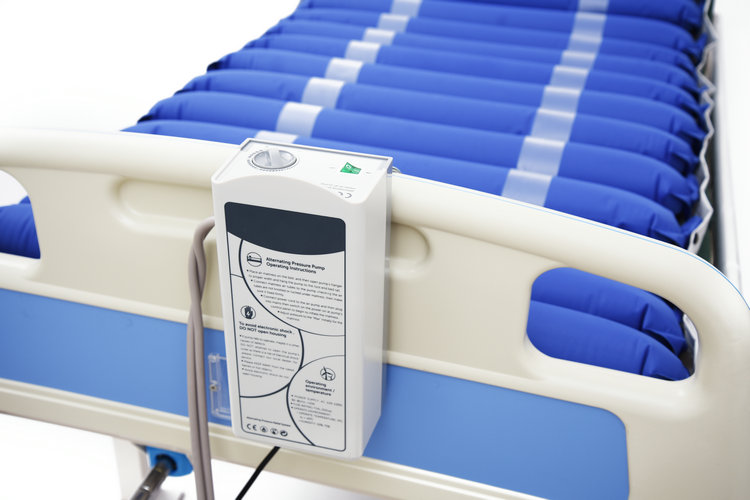

Air alternating pressure Cushion Air Pump
Size

190*85*8cm

Size

23.5*12*9.5cm

Cells 24cells Voltage 110V/220V 50-60HZ
Material Nylon and PVC compound fabric Pressure range 50-120mmHg
Max weight capacity 150kgs Air output 5-7L/min
Accessories Repair kit and hose included Cycle time 12min
Warranty 12months Warranty 18months

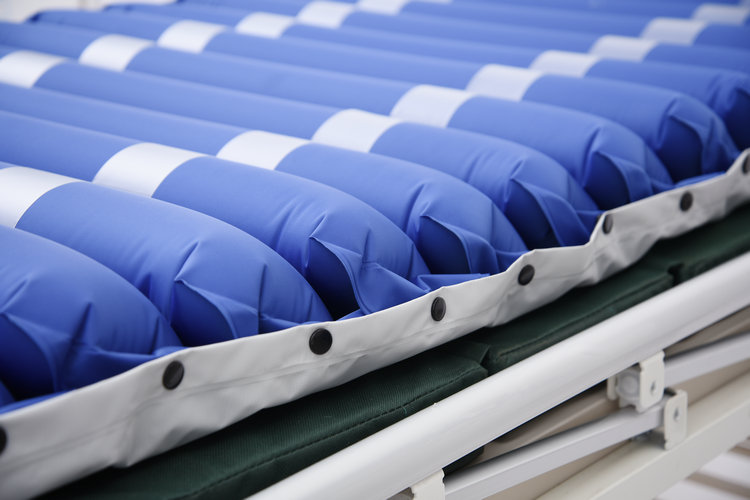

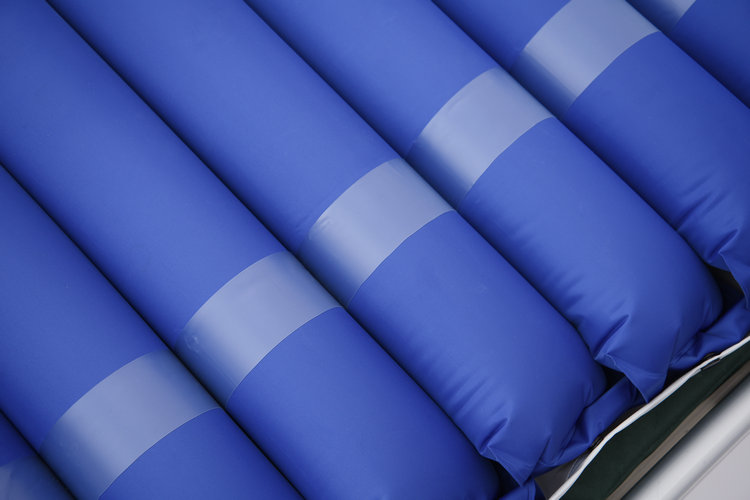

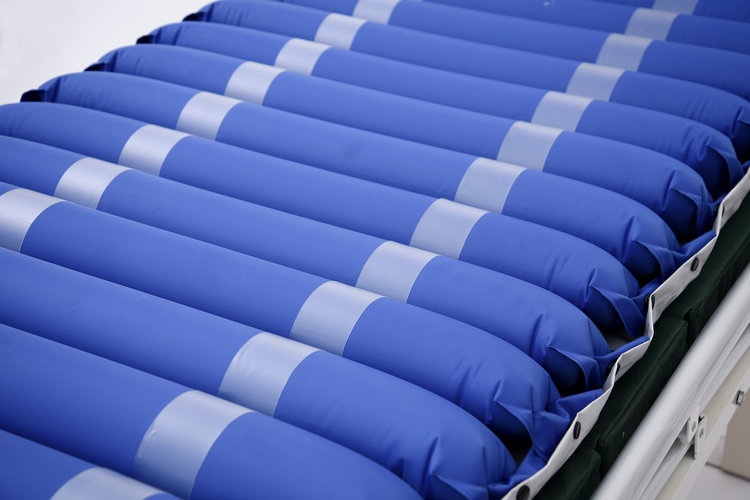

Detailed Images

air mattress medical
air mattress bed

air mattress

medical air mattress


Packaging&Shipping

Packaging: Each set air mattress packaged with a color box, box size: 29*17*41CM, 5.5kgs
4 sets a carton, carton size: 70*31*41.5CM, 24kgs

Lead time: 2~5 working days for sample, 20~30 working days for bulk order

Delivery method: By sea, by air or express, according to customers' requirements
